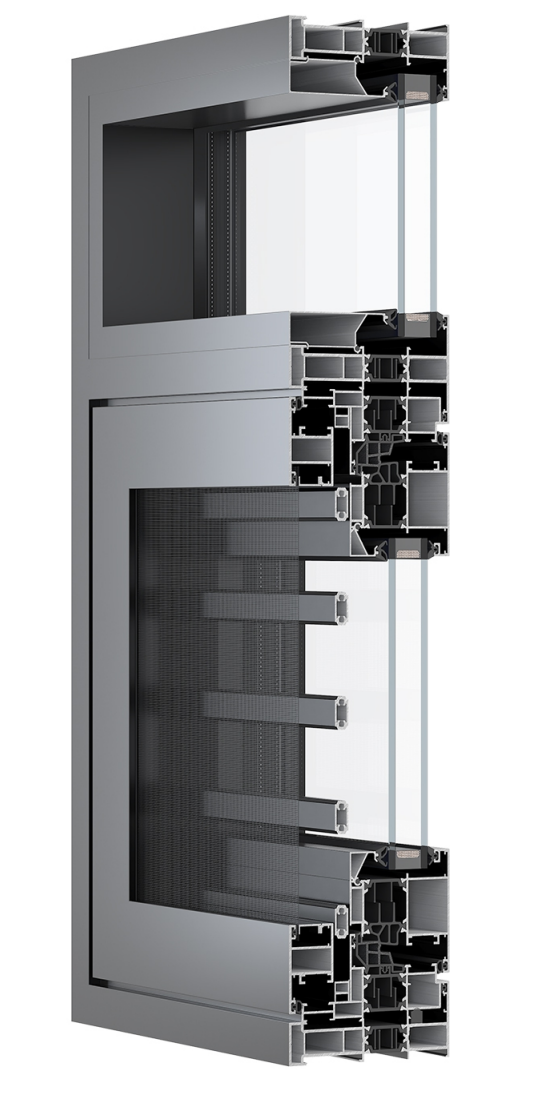

ES110 High-Performance Outward-Opening Thermal Break Aluminum Window

Description

Overview

The ES110 is TAYON's high-performance outward-opening (casement) thermal break aluminum window system, designed for projects that need dependable weather performance without a heavy visual frame. The system is built on 6063-T5 aluminum profile with a choice of 1.8mm or 2.0mm main frame wall thickness, so a project team can specify a cost-optimized configuration or a higher-performance configuration on the same base platform.

A flush frame-and-sash design keeps the visible sightline as narrow as 26mm, giving elevations a clean, contemporary look while maintaining structural integrity. The equal-pressure gasket is welded into the frame as a single continuous seal rather than assembled from cut lengths, which improves long-term water and air tightness and makes the window easier to clean and maintain over its service life.

At the adapter/transom joints — typically the most vulnerable point for water ingress in a window system — the ES110 uses multiple sealing strips to build a layered water barrier. Glazing beads use a reinforced cavity structure to increase wind-pressure resistance, while inner and outer gaskets clamp the glass from both sides to improve sealing and simplify on-site installation.

Key Features

Dual wall-thickness options

3.0mm and 2.0mm main frame configurations let the same platform be specified as a cost-effective or a high-performance solution, in line with national standard requirements.

Flush frame-sash design

Frame and sash sit flush with a visible sightline of only 26mm — a slim profile that balances a clean architectural appearance with structural safety.

Integrated equal-pressure gasket

The gasket is formed with a one-piece welding process rather than joined segments, improving water tightness, air tightness, and long-term ease of cleaning.

Multi-seal adapter frame

Transom and adapter joints use multiple sealing strips to block water infiltration, with the assembly's physical performance verified through GB/T 7106 water, air and wind testing.

Reinforced glazing beads

High-strength cavity-structure beads increase wind-pressure resistance, while dual inner/outer gaskets clamp the glass for a more secure, weathertight installation.

Configurable hardware & finish

Supplied with casement-specific hardware and a choice of powder-coat or ceramic (electrophoretic) finishes across three standard colorways.

Technical Specifications

Specifications below reflect the standard ES110 configuration. Confirm project-specific figures against the current datasheet before quoting.

Profile	6063-T5 aluminum alloy, 1.8–2.0mm main frame wall thickness Finish: powder coating or ceramic (electrophoretic) coating
Hardware	CMECH casement hardware set
Gaskets	Jiangyin Haida / Fenfa EPDM sealing strips, one-piece welded construction
Thermal Break Strip	29mm polyamide thermal break strip (national standard compliant)
Standard Colors	Skin Black, Starry Gray, Coffee Brown Additional RAL / custom colors available on request
Visible Sightline	Frame / mullion: 27mm · Screen sash: 50mm
Glazing	5mm + 15A airgap + 5mm tempered insulated glass unit (IGU) Alternative glazing builds (Low-E, laminated) available on request
Opening Type	Outward-opening (casement), fixed and operable sash configurations

Performance Ratings

Water tightness, air tightness and wind load resistance are graded on China's national GB/T 7106 test method, where a higher grade number indicates stronger performance.

Water Tightness

Grade 5

Grade 5 of 9 on GB/T 7106 — resists wind-driven rain infiltration under standard test pressure.

Air Tightness

Grade 5

Grade 5 of 9 on GB/T 7106 — limits uncontrolled air leakage through the frame and sash.

Wind Load Resistance

Grade 9

Top grade (9) on GB/T 7106 — suited to high-rise and exposed elevation applications.

Thermal Transmittance

1.2–2.0 W/(m²·K)

Uw value range depending on frame wall thickness and glazing configuration selected.

Acoustic Insulation

35 dB

Rated sound reduction (Rw) for the standard 5+15A+5 glazing build.

Frame Configuration

2.0 / 3.0mm

Two main-frame wall thickness options to match performance and budget requirements.

About GB/T 7106: GB/T 7106 is China's national test method standard for the air permeability, water tightness and wind load resistance of building exterior windows and doors. It is a laboratory test-method standard, distinct from CE marking or other regional product certifications — project teams working to European or other regional codes should confirm which local standard applies for their jurisdiction.

Application

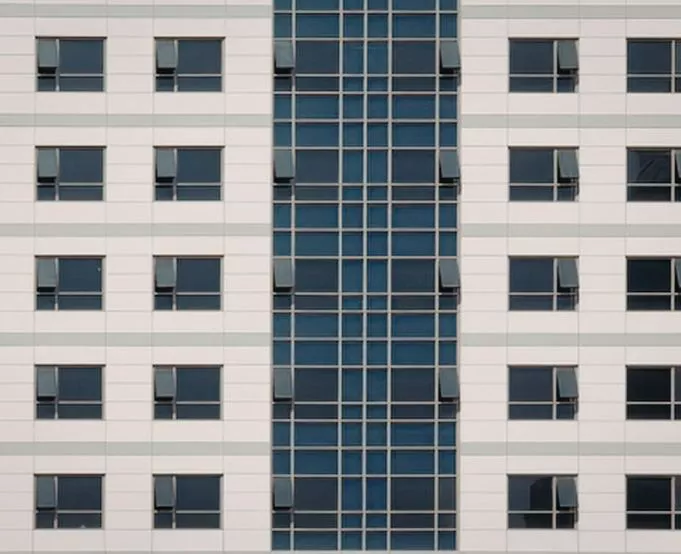

High-Rise Residential

Grade 9 wind load resistance supports use on exposed, upper-floor elevations in residential towers.

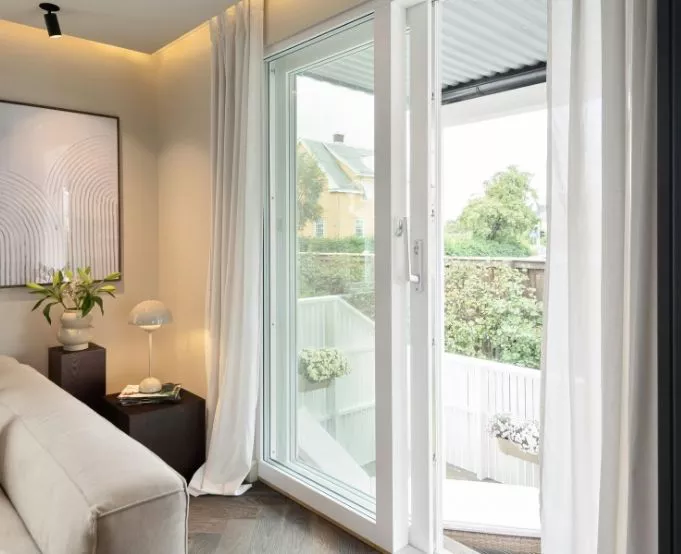

Villas & Low-Rise Housing

Slim 26mm sightlines suit contemporary villa and townhouse façades where daylight and clean lines matter.

Finishes & Colors

Three standard finishes are available in powder-coat or ceramic (electrophoretic) coating; custom RAL matching can be discussed for project orders.

Skin Black

Starry Gray

Coffee Brown
