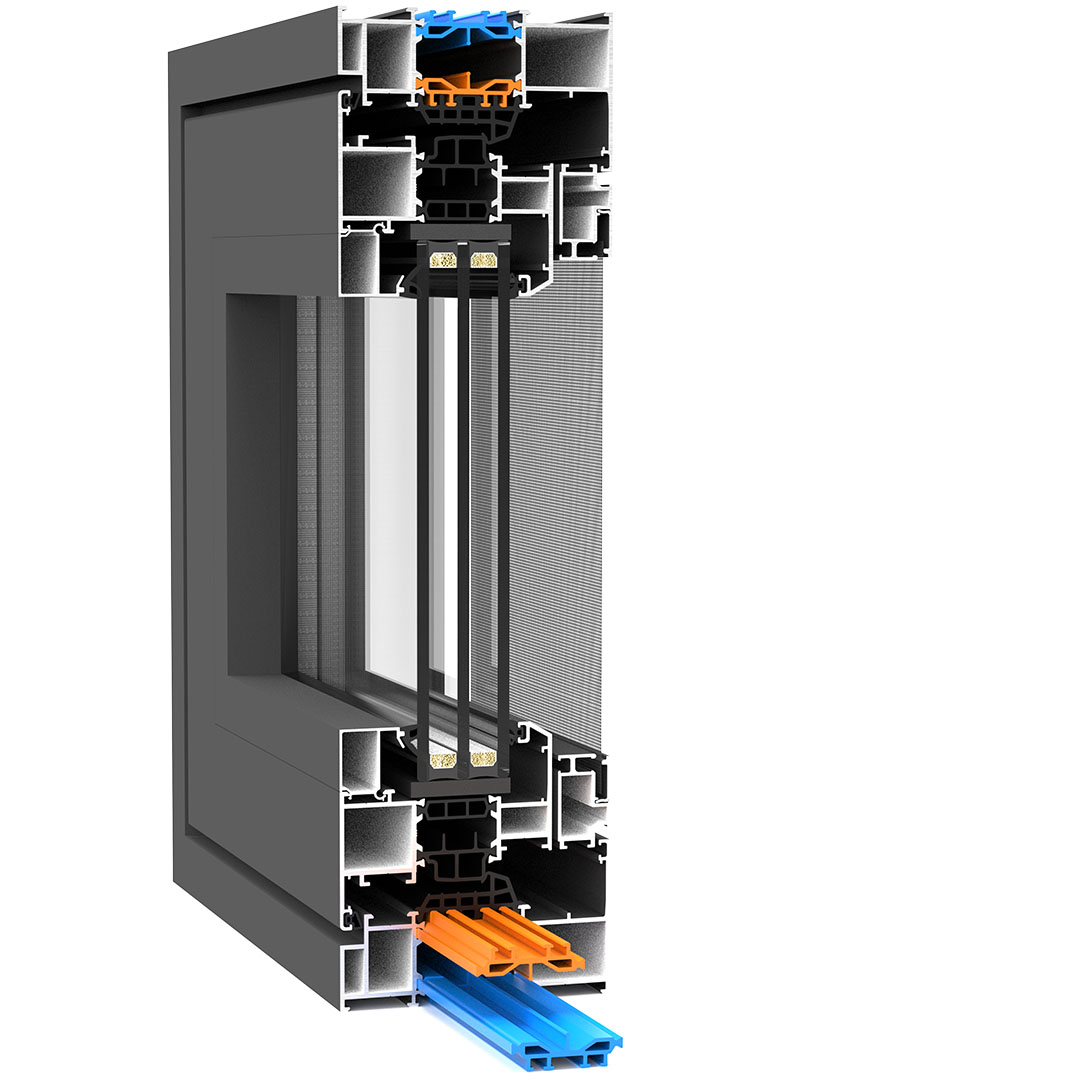

BF115 INTEGRATED ELECTRIC WINDOW & SCREEN SERIES

Product Features

1. The driver is equipped with a custom‑built brushless motor paired with top‑tier planetary gearboxes in the industry, supporting more than 30,000 opening‑closing cycles.
2. Adopting a “clutch‑free” internal structural design with manual‑priority logic, the window can be manually operated directly under any working condition.
3. Built‑in high‑torque motor inside the driver, compatible with conventional friction stays, gear‑driven hardware, concealed hinges and various types of window handles.
4. Multiple sensors and control chips integrated within the driver to feed real‑time window status data, enabling stable operation across diverse application scenarios.
5. The controller adopts a dual‑core main chip, supporting Wi‑Fi, Bluetooth connection and intelligent cloud‑based control.
6. Flush frame‑sash design with unified interior‑exterior flat surfaces, effectively improving thermal performance. Clean square‑shaped lines deliver minimalist aesthetics.
7. Frame‑free insect screen design reduces overall costs. Removable screen sash supports both security steel mesh and standard fly‑screen mesh for easy interchange and practical application.
8. Corner joints adopt pin‑fixed corner connectors with pre‑integrated flow channels. Special glue‑guiding structure enables two‑component adhesive to fully penetrate inner corners. High structural strength with excellent anti‑fracture performance, machining precision up to 0.3 mm, flat and neat appearance for greatly improved overall processing efficiency.

Material Configuration

• ·Profile: European‑standard 6060‑T66 aluminum
• ·Thermal break strip: PA66GF25, 44 mm width
• ·Glass: 5 mm +20Ar +5 mm Kömmerling 4SG insulated tempered glass, 25‑year warranty
• ·Hardware: Roto Germany tilt‑and‑turn hardware
• Performance Indicators

• Performance Item	Rating
  Water tightness	Level 6
  Air tightness	Level 8
  Wind‑load resistance	Level 9
  Thermal insulation	Level 9
  Sound insulation	Level 4
