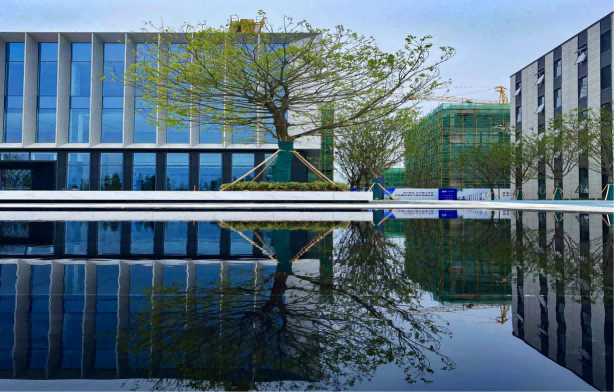

CW35 Narrow‑Frame Curtain Wall Series

Key Features

• Main beam aluminum profile thickness: 2.0‑5.0 mm. Flexible structural design delivers superior wind‑load and seismic resistance.
• System‑oriented design; various technical performance requirements can be achieved by configuring different mullions and transoms.
• Freely combinable with the TAYON window system to meet diverse style, ventilation and daylighting requirements.
• Excellent thermal insulation performance. Enables large‑area daylight intake while minimizing energy loss.

•  Specifications

  Profile
  • Thickness: 2.0‑5.0 mm, 6063‑T5 aluminum alloy
  • Surface finishes: Powder coating, fluorocarbon coating, ceramic paint
  Hardware
  • Custom TAYON hardware
  • Hardware components: KINGLONG hardware, Anzhuang soft hinges
  Gaskets
  • Custom TAYON RUIDA BAIBANG gaskets, aerospace‑grade sealing
  Visible Face Width
  • Transom: 35 mm
  • Mullion: 35 mm
  Colors
  • Star‑sky Grey, Star‑Coffee, Sand Black
  Opening Solutions
  • Fixed / Top‑hung
  Glass
  • 6 mm clear glass +12Ar +6 mm clear glass
  • Fixed unit: frame width 600‑2800 mm; frame height 1500‑3300 mm
  • Projected top‑hung sash: sash width 450‑2500 mm; sash height 600‑2000 mm
  Depth Dimension
  • Frame depth: 170 mm
  • Sash depth: 55 mm
  • CW35 Narrow‑Frame Curtain Wall Series

    Built with 2.0‑5.0 mm‑thick 6063‑T5 aluminium profiles in flexible construction for high wind‑load and earthquake resistance. This system supports flexible mullion‑transom combinations and seamless integration with SKYVIEW window solutions. Aerospace‑grade sealing gaskets deliver outstanding thermal insulation, bringing ample natural daylight while reducing energy consumption. Available in fixed and top‑hung configurations with slim 35 mm visible sightlines. Multiple surface finishes and colour options are offered for commercial and high‑end residential facade projects.
