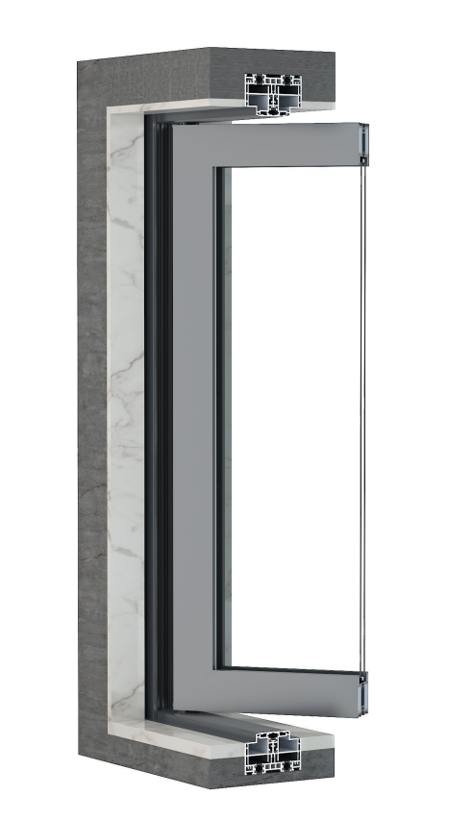

PD104 Pivot door

Product Highlights

• ·Robust structural design enables custom‑made heights up to 5 meters. Original imported hardware ensures smooth, flexible operation and long‑term durability.
• ·Ultra‑slim minimalist frame design allows concealed installation, minimizing frame visual obstruction and maximizing unobstructed viewing.
• ·Multiple pivot hinge options are available to satisfy personalized customization requirements for residential projects.
• ·Minimalist linear exterior profile for fast and efficient installation.

Technical Specifications

• ·Frame visible width: 50 mm
• ·Sash visible width: 86 mm
• ·Profile thickness: 2.0‑6.0 mm
• ·Glass configuration: 8 mm ultra‑clear glass +22A +8 mm ultra‑clear glass
• ·Hardware: TBT pivot hinges, KINGLONG handle and lock hardware (optional)
• ·Finishes: Matte Black, Herbert Black‑Grey, Starry Grey, Star Coffee
• ·Air tightness: Level 6
• ·Water tightness: Level 4
• ·Wind‑load resistance: Level 9
• ·Thermal transmittance: 2.5 W/(m²·K)
• ·Sound insulation: 35 dB
• ·Maximum sash area: 7.5 m²
